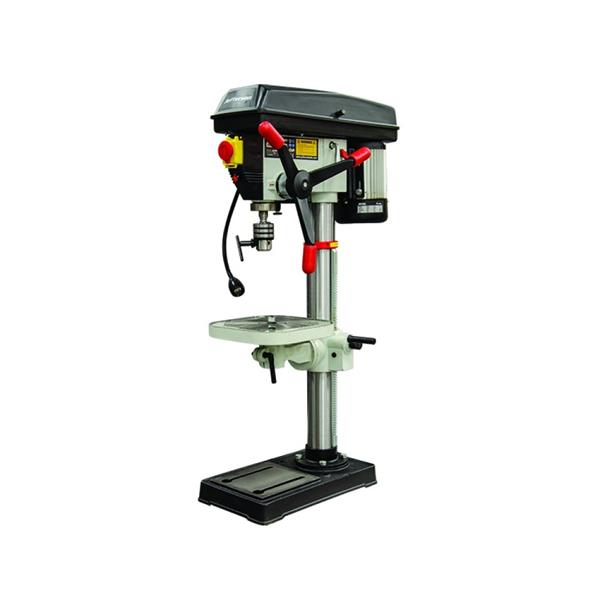

Jefferson JEFPDB0550 Bench Drill 550W
The Jefferson JEFPDB0550 Bench Drill (550W) is a heavy‑duty, 16‑speed pillar drill designed for accurate drilling in wood, plastics, and metal. Below is a complete, structured breakdown of its features, applications, and what it comes with, fully grounded in the official Jefferson specification and user manual.
Features

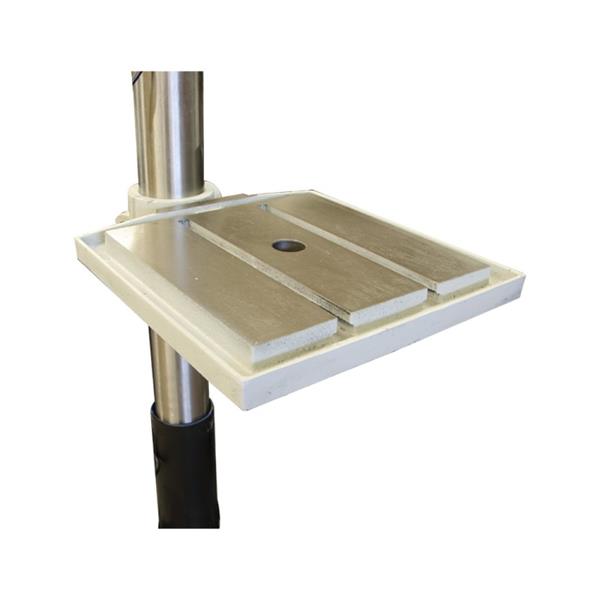

- Cast iron working table and cast iron base
- Micro-switch inside pulley cover box

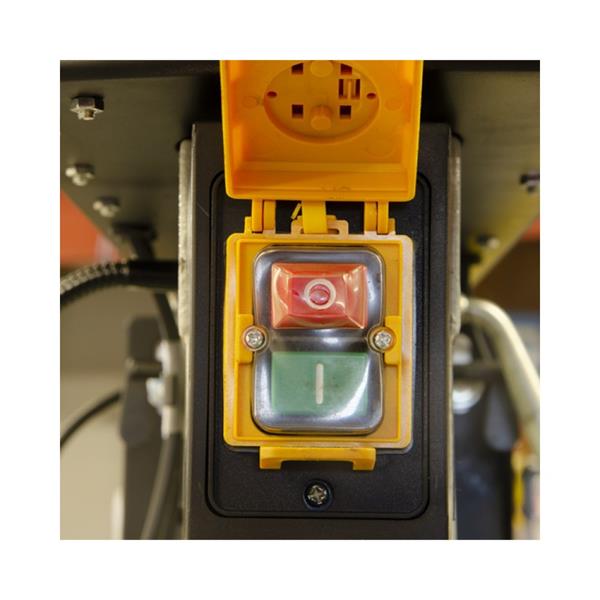

- Front emergency switch

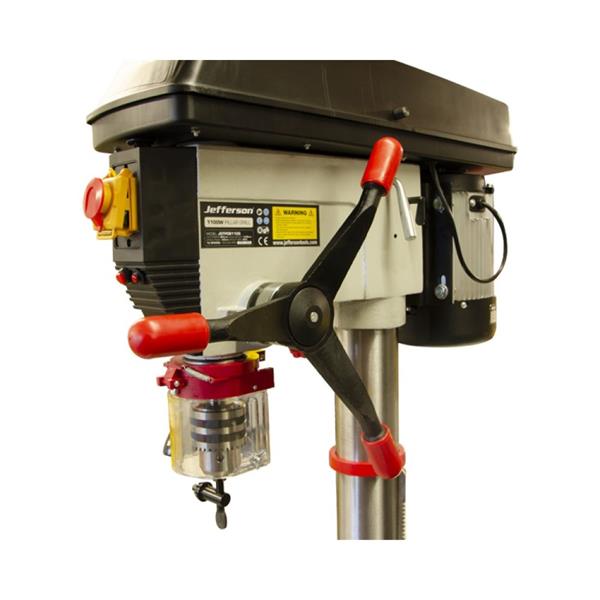

- Cast iron feeding handle

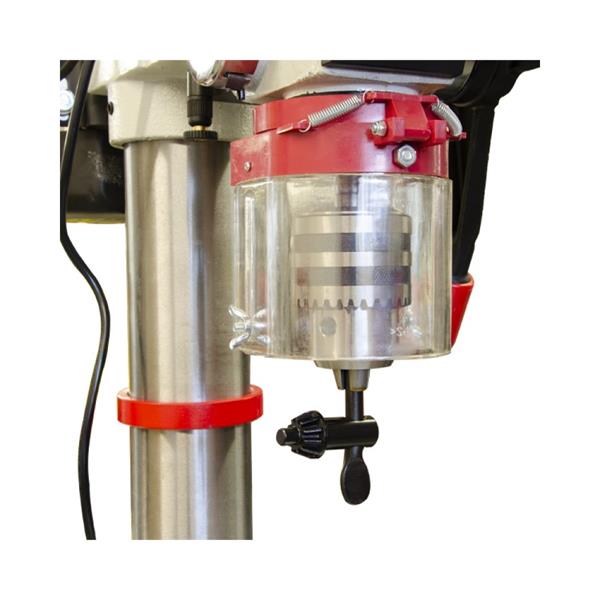

- Chuck guard
- Cast iron belt pulley
- Rack lifting system
- Flexible LED working light
- +BW31Cross laser light
Specifications
- Chuck Capacity 16mm
- Height 980mm
- Max. Drilling Diameter 16mm / 5/8"
- Motor Power 550W
- Number of Speeds 16
- Speed 180-2770rpm
- Spindle Travel 80mm
- Voltage 230V
- Net Weight 43 kg
- Gross Weight 45 kg
- Dimensions 570 x 274 x 965mm
Applications
- Metalworking — drilling mild steel up to 16 mm.
- Woodworking — accurate vertical drilling for joinery, cabinetry, and furniture making.
- Plastics and composites — controlled drilling using appropriate speeds.
- Workshop fabrication — jigs, fixtures, brackets, and repetitive drilling tasks.
- Precision drilling — thanks to the depth stop, laser guide, and stable cast‑iron construction.
Comes With
- JEFPDB0550 bench drill unit
- 16 mm keyed chuck
- Chuck key
- Cast‑iron base and column
- Tilting drill table
- Pulley/belt system with safety micro‑switch
- Chuck guard
- Flexible LED work light
- Cross‑laser guide
- Front emergency stop switch
- Assembly hardware
- User manual (v1.2)
